Model RPG Bulk Solids Sampler
Part #: TBD
Get Started
Request A QuoteStill Have Questions?
Contact Us

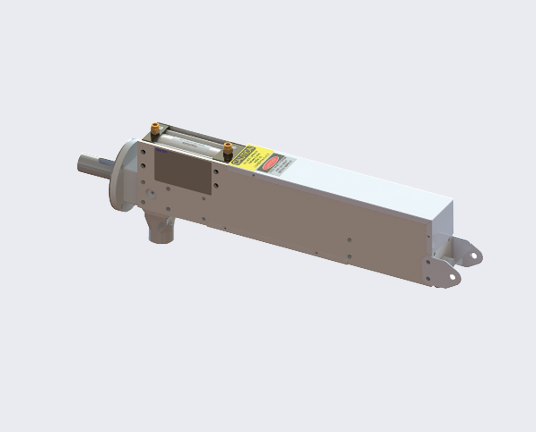

The Sentry RPG bulk solids sampler automates sampling of dry free-flowing materials such as granules, powders, flakes or pellets from gravity chutes and hoppers. Best used on homogenous product, the sampler captures samples from a point in a process streams.
To obtain a sample, the Sentry RPG sampler's air cylinder moves a sample probe into the process stream while an air actuator rotates the sample chamber into the upright position. Sample characteristics are not affected by the sampler.
- The RPG sampler is available in a variety of stroke lengths - 4, 6, 8, 10 and 12 inches (102, 152, 203, 254, and 305 mm).
- Sentry’s bulk solid sampler is flexible with a variety of options available – release coating, QPQ hardening, pre-plumbed filter, and more.
- The Model RPG is intended for use on gravity spouts, hoppers, or transfer chutes. Custom mounting adapters available to meet specific needs.
- Seal kits and sample containers available to meet your repair and sampling needs
| Materials | Particle Size | Temp Rating | Air Requirements |
|---|---|---|---|
|
300 series stainless steel, urethane,
nylon,acetal, white nitrile, aluminum cylinder |
10 μm to 1/4 in (6 mm) | -10 to 175°F (-23 to 79°C) | 60 to 80 psi (4.1 to 5.5 bar) |
Related Resources
Learn more about how the Model RPG Sampler can benefit your application with the following resources.
Spec Sheets

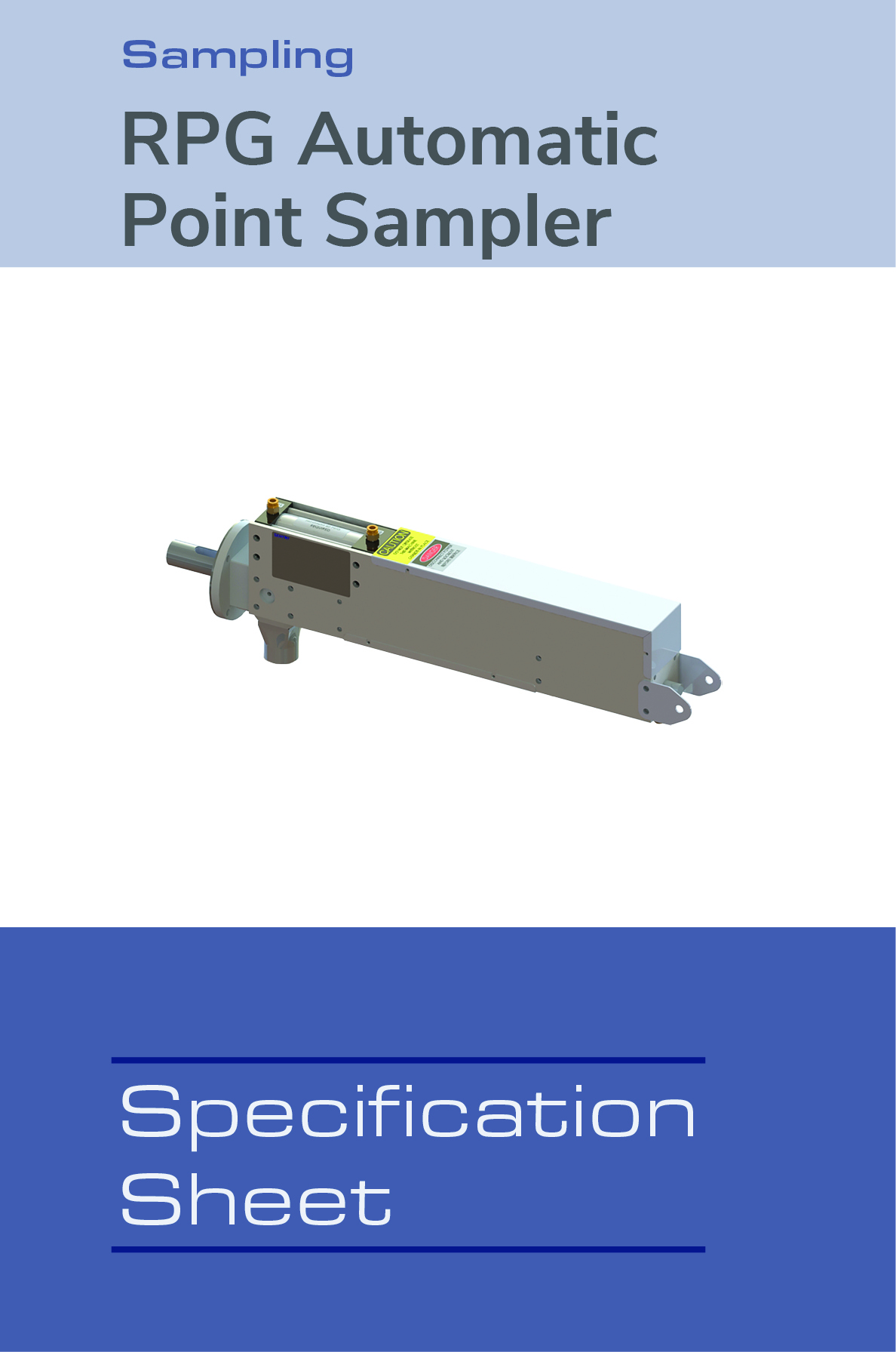

Model RPG Sampler Spec Sheet
