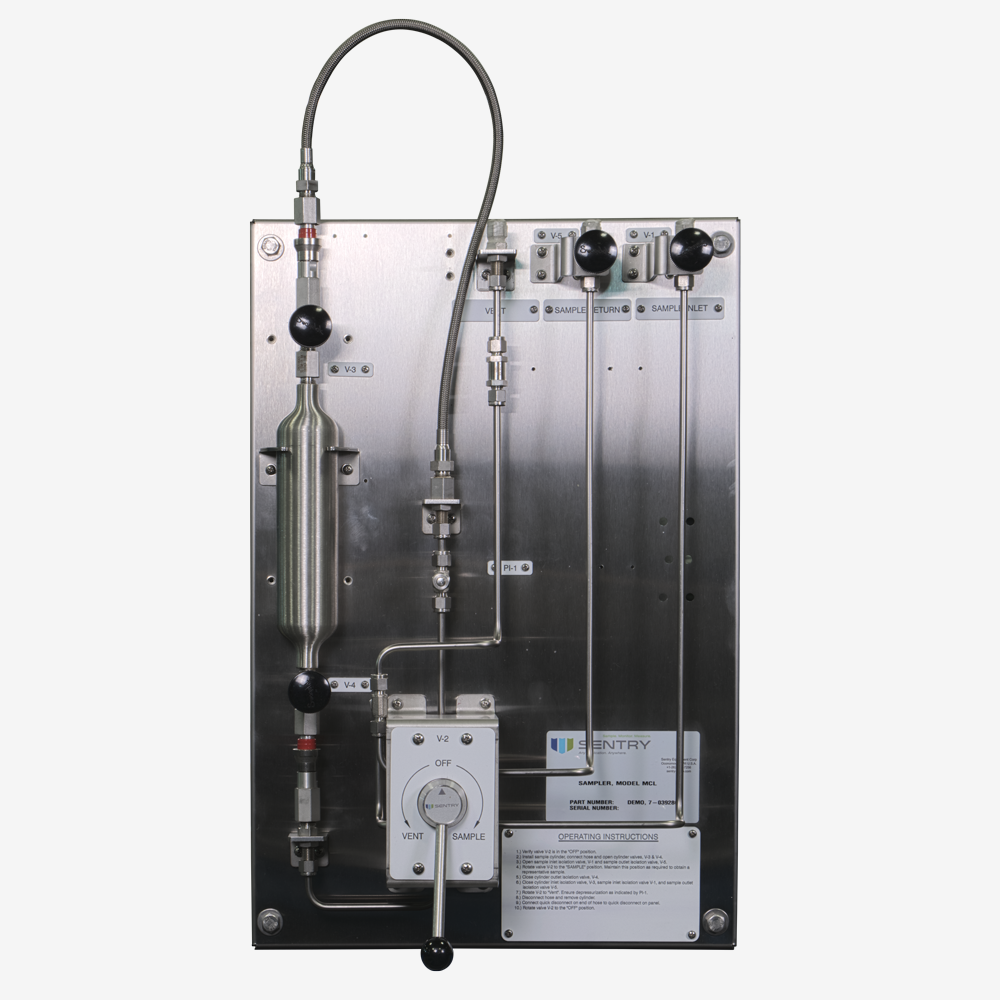

Model MCL Sampler
Part #: 7-04158B
Get Started
Request A QuoteStill Have Questions?
Contact Us
Designed to sample high vapor pressured liquids, the Model MCL Low-E Liquid Sampler uses closed-loop cylinder sampling to safely obtain and transport material.
The Sentry MCL sampler provides representative samples while protecting the safety of operators and the environment. The sampler features a tandem switching valve so multiple functions easily are integrated into one device. All operations are controlled with a simple four-position sample selection valve for ease of operation.
- The MCL sampler comes available with a variety of configurations to ensure that it meets your application needs.
- Additional options include a cylinder relief valve and carbon canisters, ensuring your operators and environment maintain peak safety.
| Wetted Materials | Pressure Range | Temp Range* |
|---|---|---|
|
316 stainless steel, PTFE
O-Rings: FKM or FFKM |
1800 psi (70 bar) | up to 300°F (122°C) |
*higher temp ranges available upon request
Related Resources
Learn more about how the Model MCL Sampler can benefit your application with the following resources.
Spec Sheets

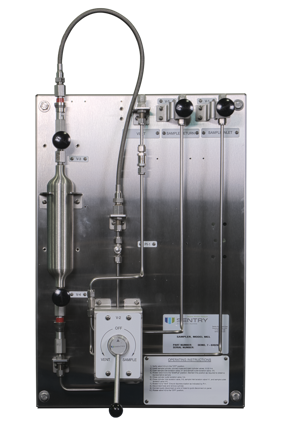

Model MCL Sampler Spec Sheet
Instruction Manuals
Model MCL Instruction Manual
Marketing Materials
ProShield Oil and Gas Service Brochure
Technical Diagrams
Low-E Application GuideNeed Something Else?
Model C Sampler
Designed to sample gas and high vapor pressure liquids, the Model C Sampler maintains the integrity of your sample while focusing on the safety of your operators and environment.
Model MCG Gas Sampler
Safely sample gas with Sentry’s closed-loop MCG Gas Sampler. By utilizing a sample cylinder, your operator, environment, and sample avoid contamination and danger.
